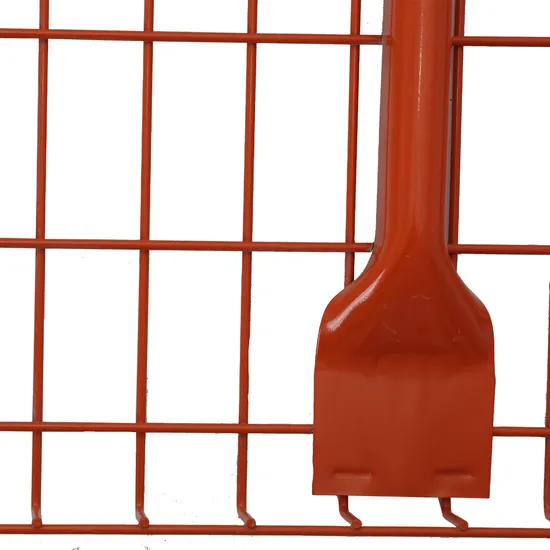

Professional Manufacturer Long Span Wire Mesh Decking Racks

• Overview
• Product Description

Overview

Basic Info.

Usage	Tool Rack, Tools, Industrial, Warehouse Rack
Material	Steel
Structure	Wire Mesh Decking
Type	Wire Mesh Decking
Mobility	Mobile
Height	0-5m
Weight	300~1500kg
Closed	Open
Development	Conventional
Serviceability	Common Use
Load in 40hq	2448
Channel Type	Flared/U/Inverted Channel, etc.
Finish	Zinc Plated/ Hot DIP Galvanized/Powder Coating
Style	Accessories of Warehouse Rack
Color	Customized
Steel Type	Mild Steel Q235
Certification	ISO9001/TUV/ BV/ SGS
Transport Package	Plastic Banding+Stretch Film Wrapped
Specification	W880*1100d mm
Trademark	Jiamu
Origin	China Dalian
HS Code	73269000
Production Capacity	100, 000 Pieces/Month

Product Description

Wire decking is used as support of material or products that are placed on certain pallet rack. It allows the visibility and air flow of racking system , and it's easy installation by just put the wire deck on rack without no tools required.Strong, lightweight welded wire mesh construction. Custom designable, Our wire decking is made to fit the specific depth, length and load capacity of your rack system. Two styles are our standard: for step beam and box beam pallet racks.Wire deck specification:

Product Description Wire thickness 3.0-5.0mm Grid :25x100mm,50x100mm Channel thickness : 1.5-2.0mm Loading capacity : up to 1500kg per piece Surface finishing : hot dip galvanized, zinc coat and powder coated
Features: Easy installation Visibility Strong and light weight Cheap compared with wood panel & steel panel

Euro Sizes
A. Loading capacity 300kg	B. Loading capacity 800kg	C. Loading capacity 1000kg
Mesh 50×150 mm	Mesh 50×100mm	Mesh 50×100mm
Dim (D×W) (mm)	Dim (D×W) (mm)	Dim (D×W) (mm)
600×880	1000×880	1000×1340
1000×880	1050×880	1050×1340
1050×880	1100×880	800×1340
1100×880	1000×1090	1200×1340

American Sizes
Standard U-channel		Flared channel
Dim (D×W) (mm)		Dim (D×W) (mm)
24"×46"	42"×46"	24"×46"
30"×46"	42"×52"	36"×46"
36"×34"	42"×58"	36"×52"
36"×46"	48"×34"	42"×46"
36"×52"	48"×46"	42"×52"
36"×58"	48"×52"	44"×46"
42"×34"	48"×58"	48"×46"
